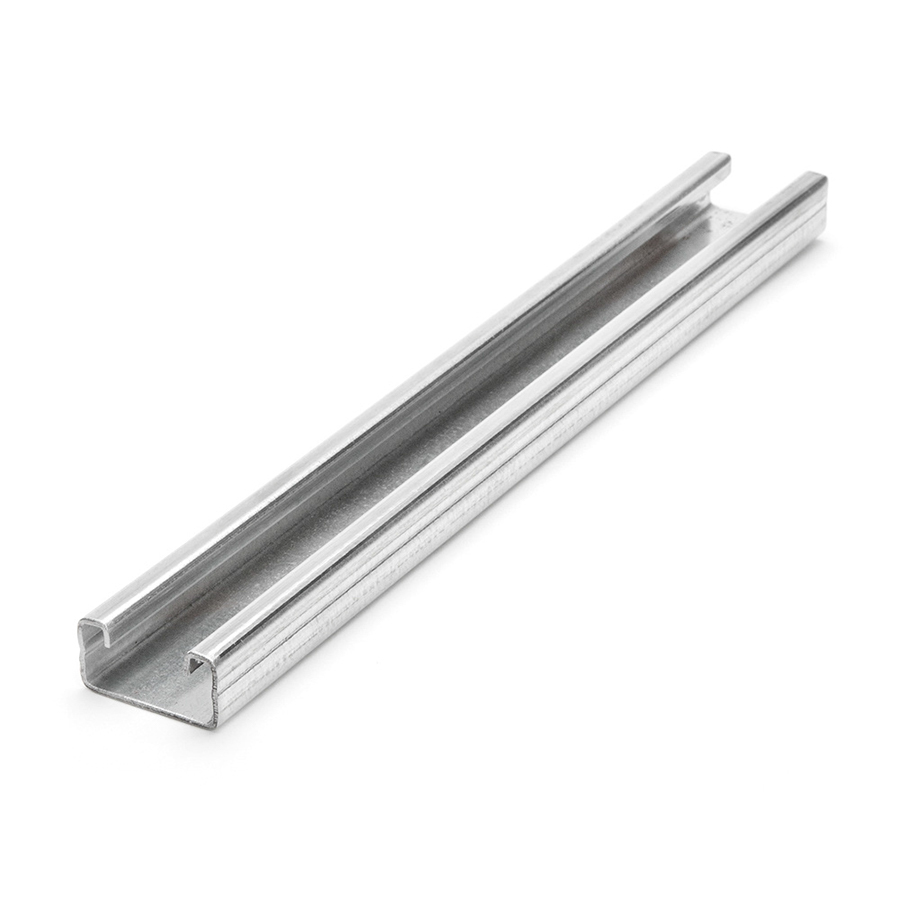

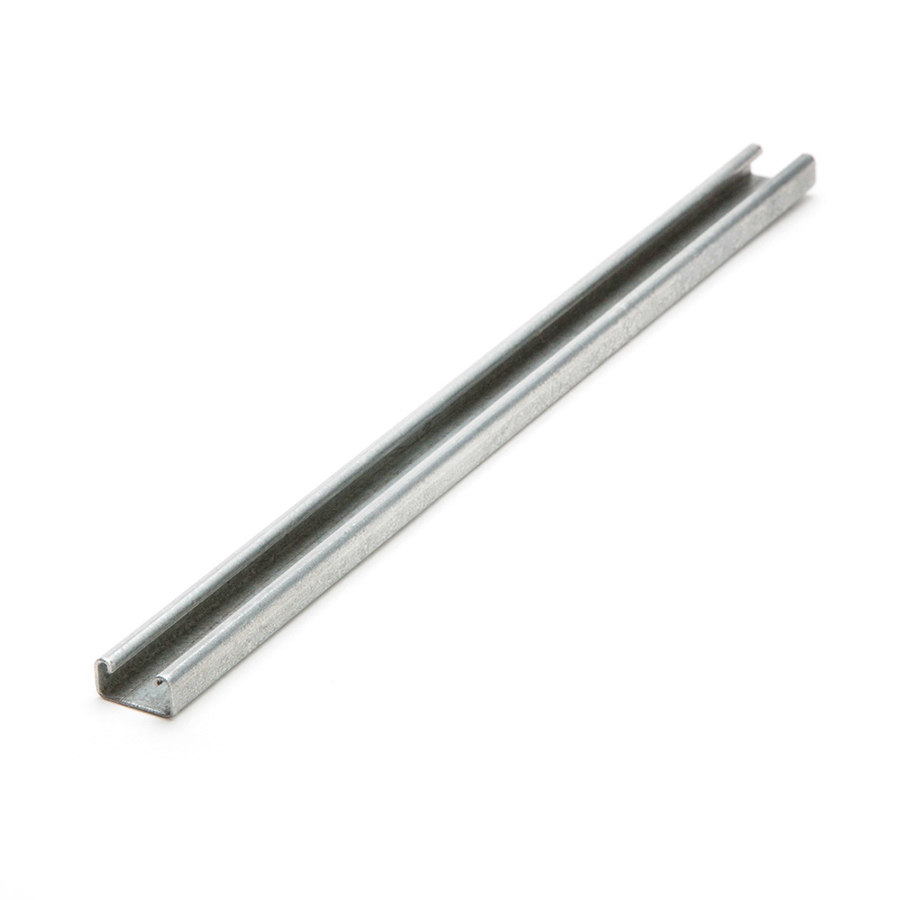

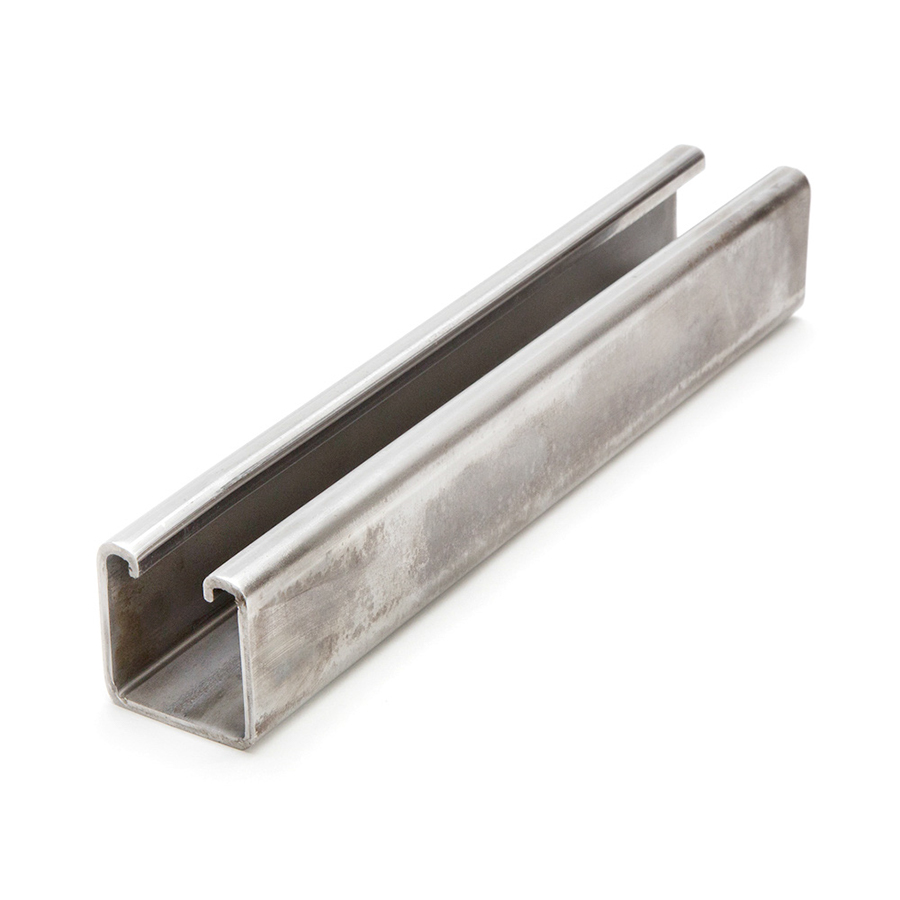

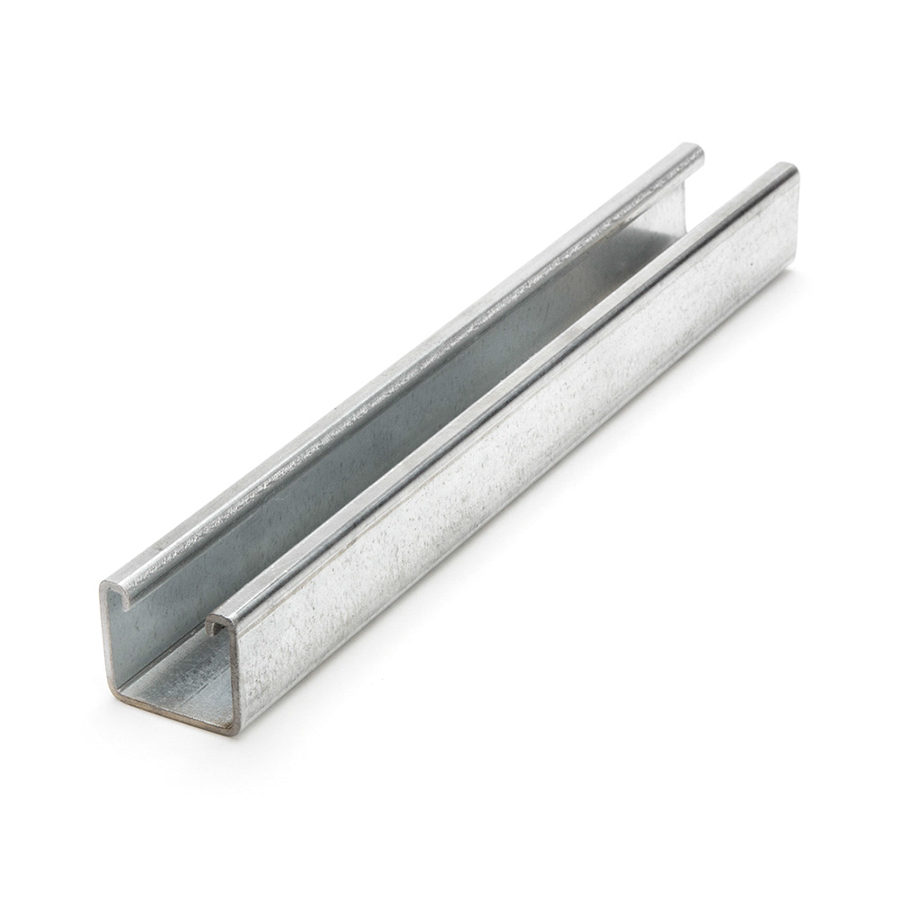

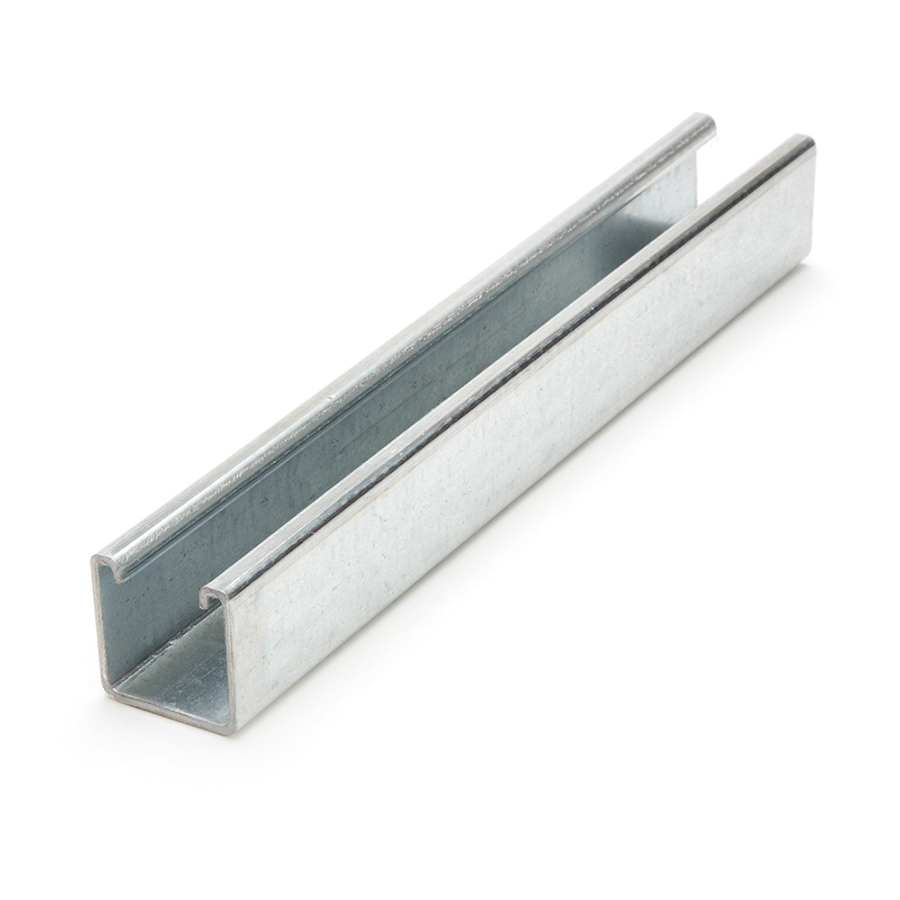

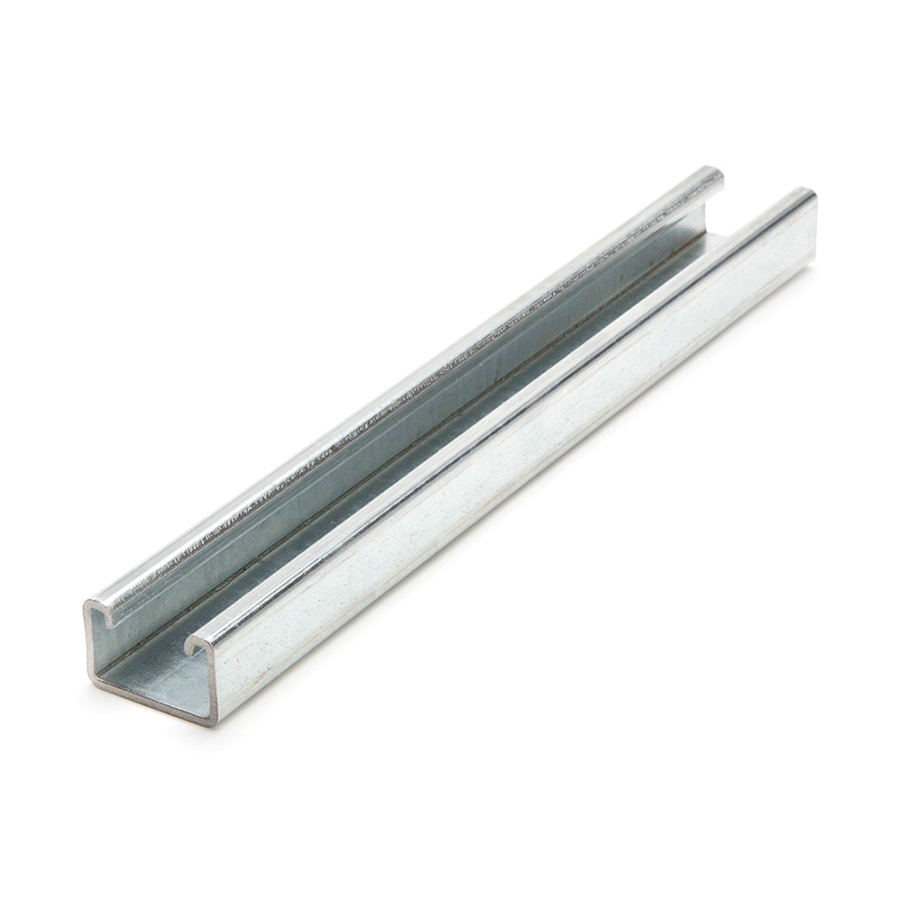

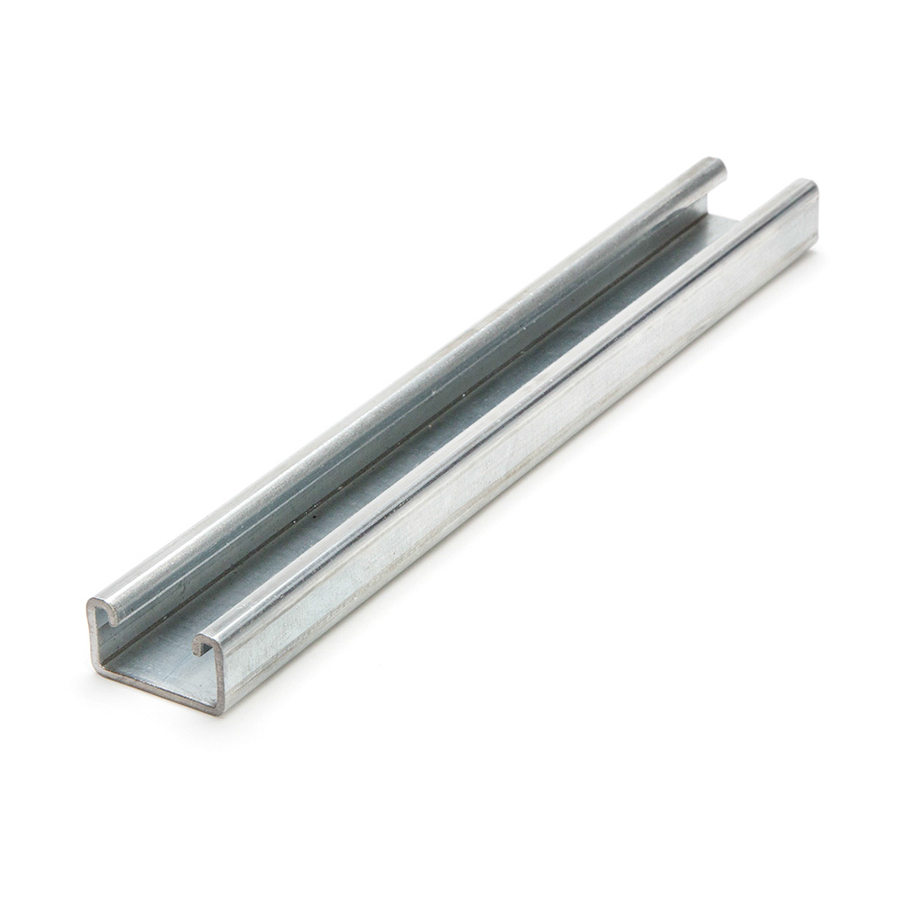

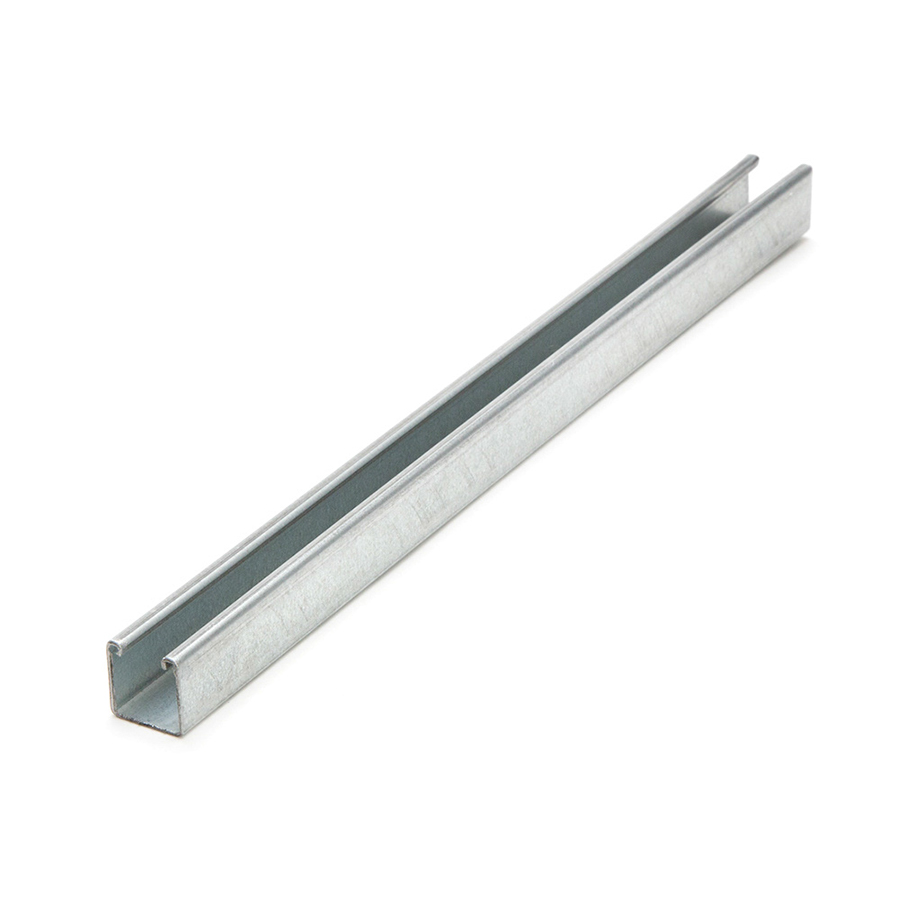

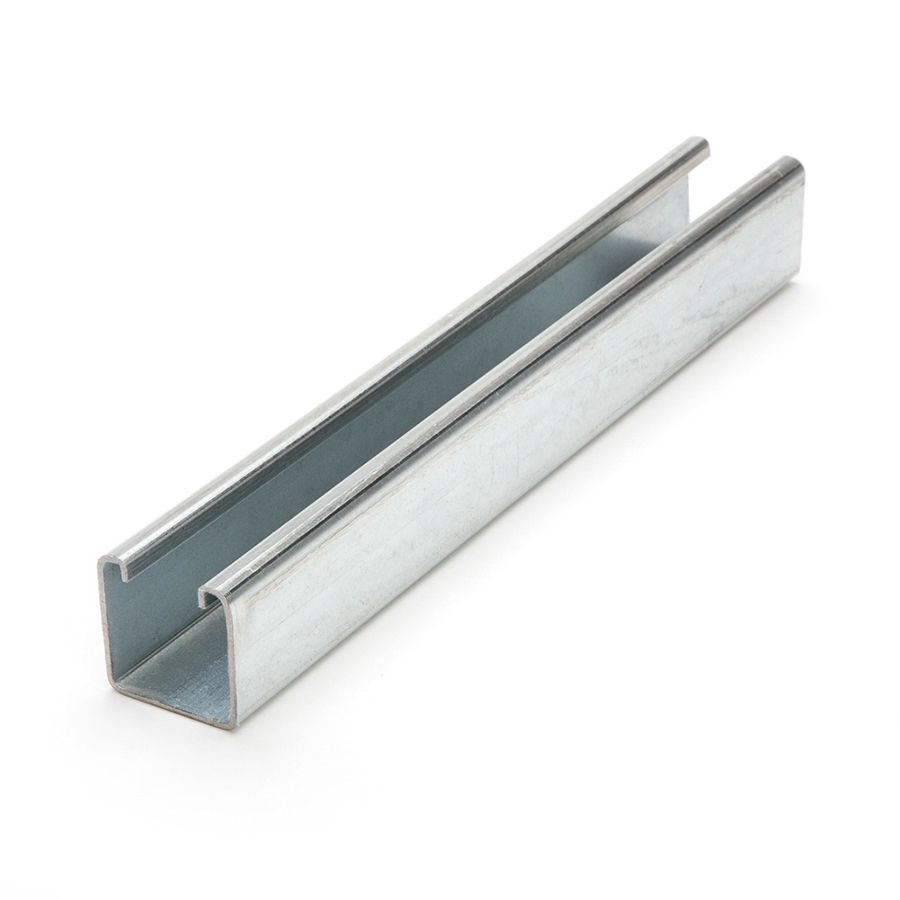

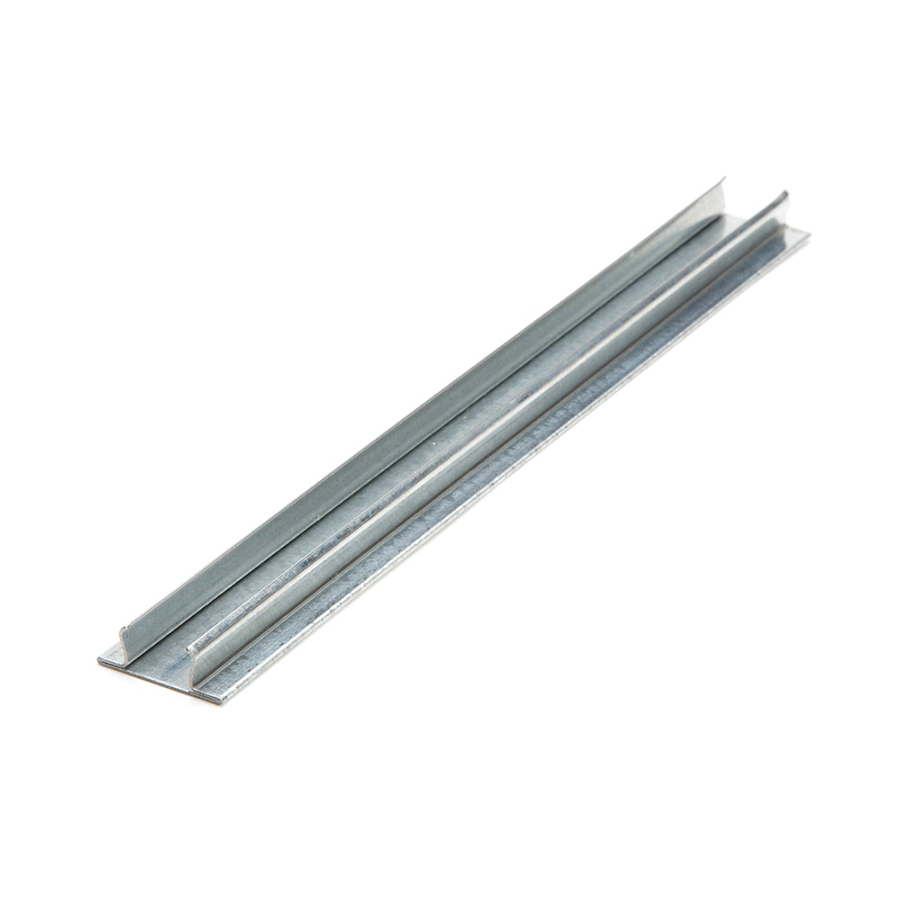

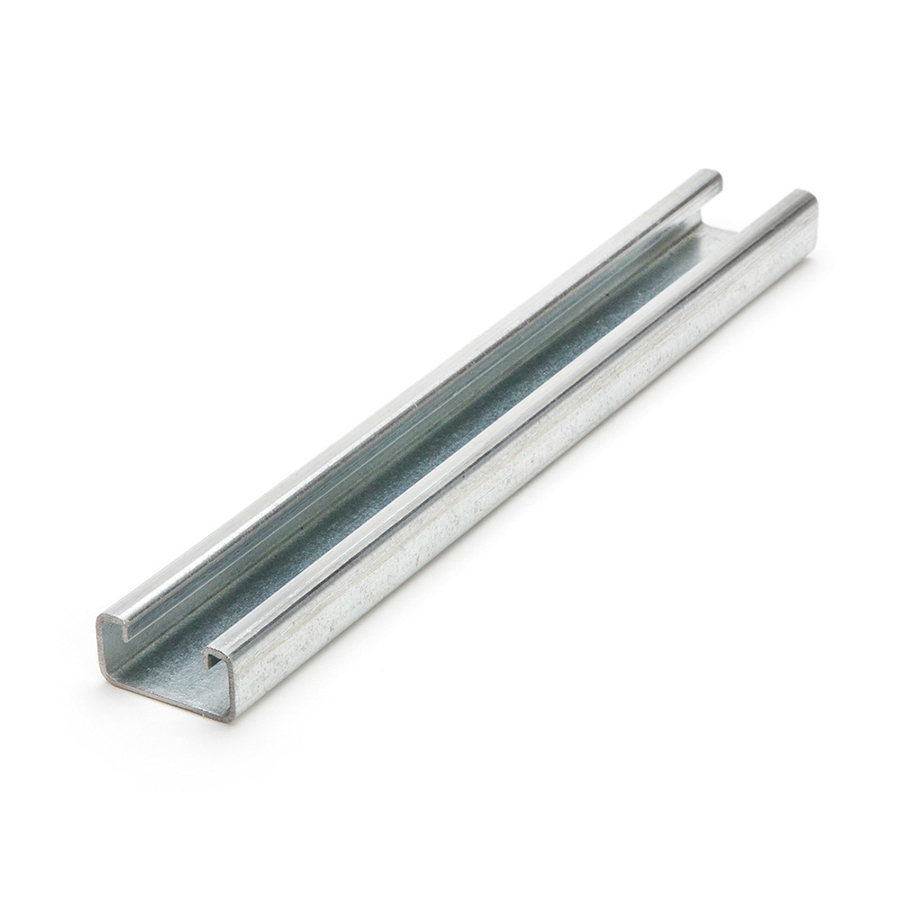

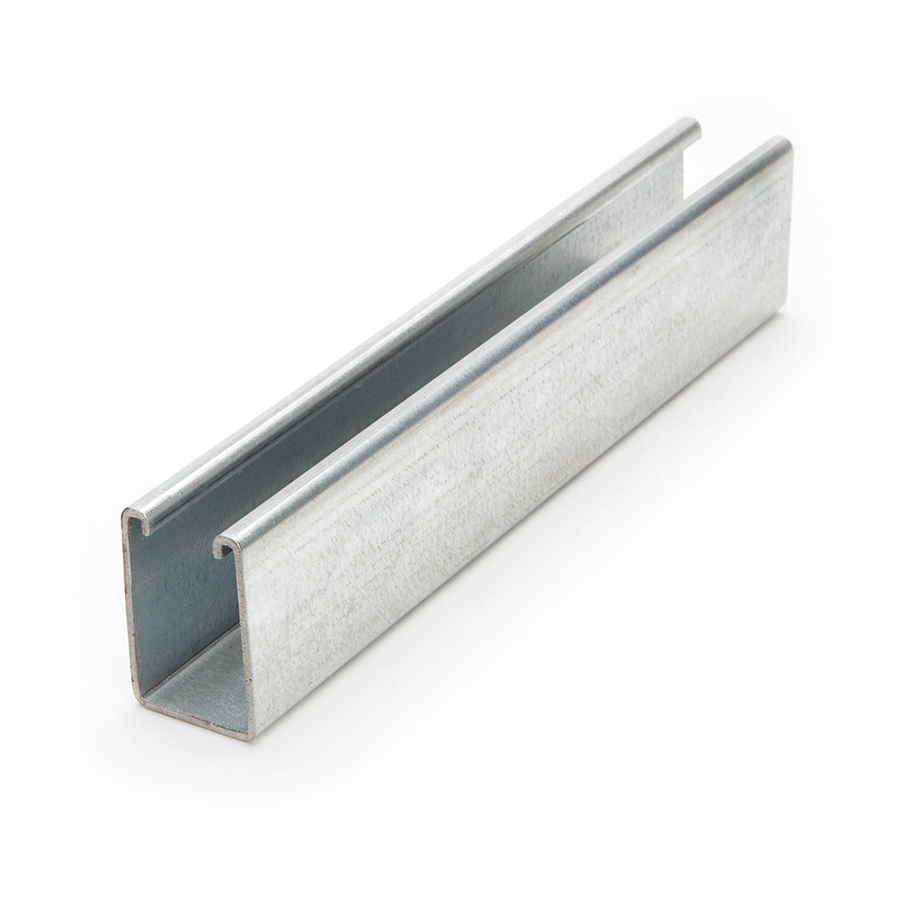

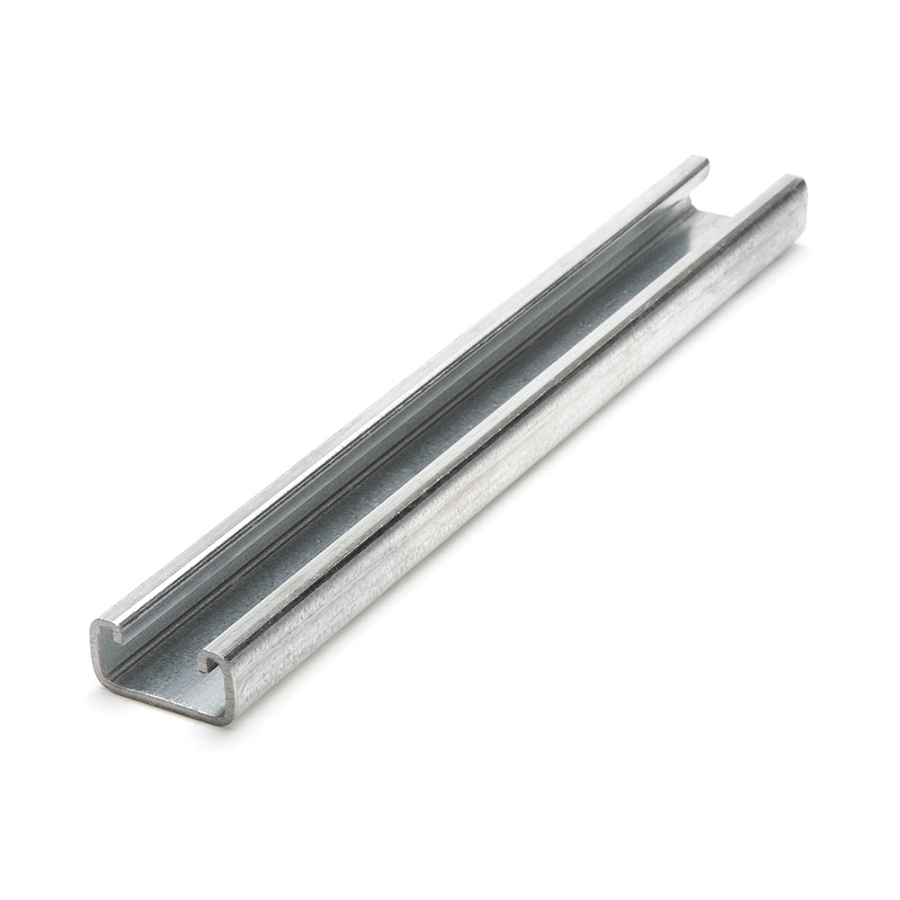

Strut Framing Channel Systems

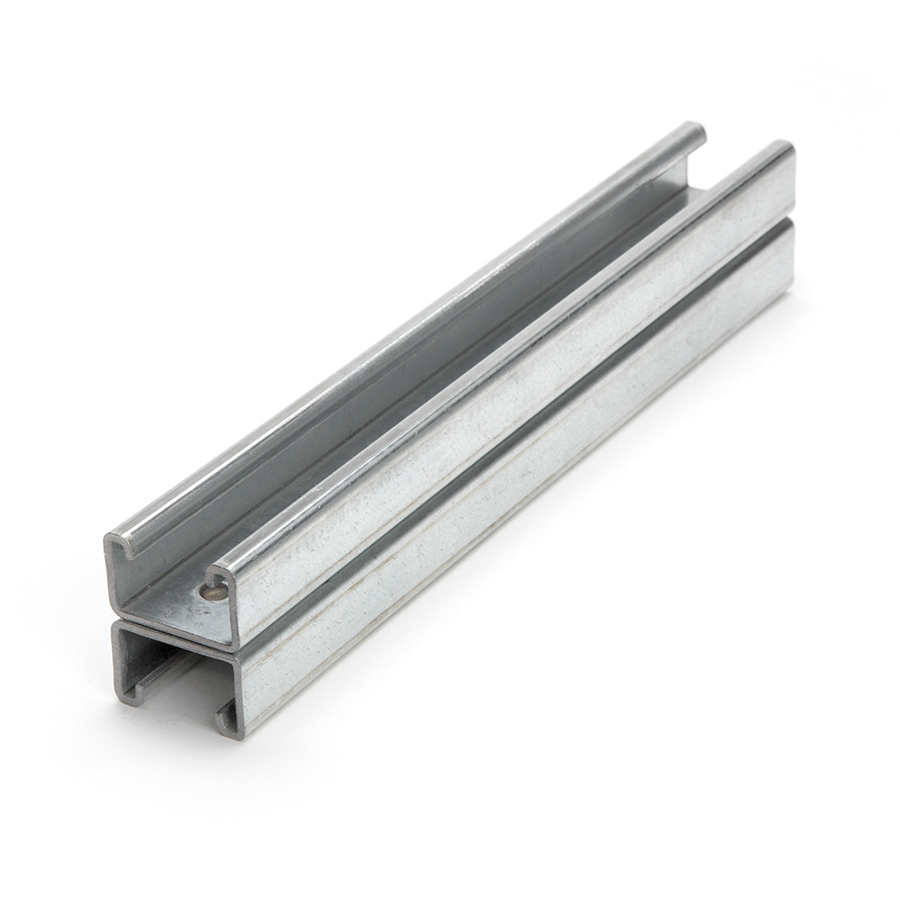

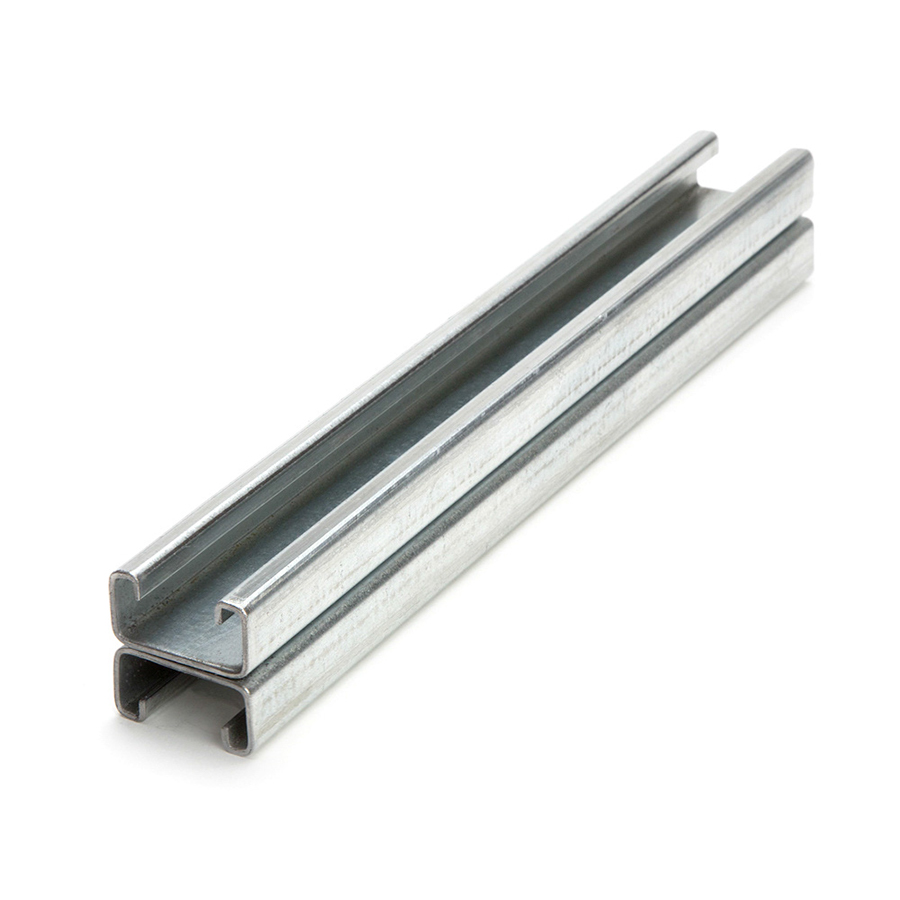

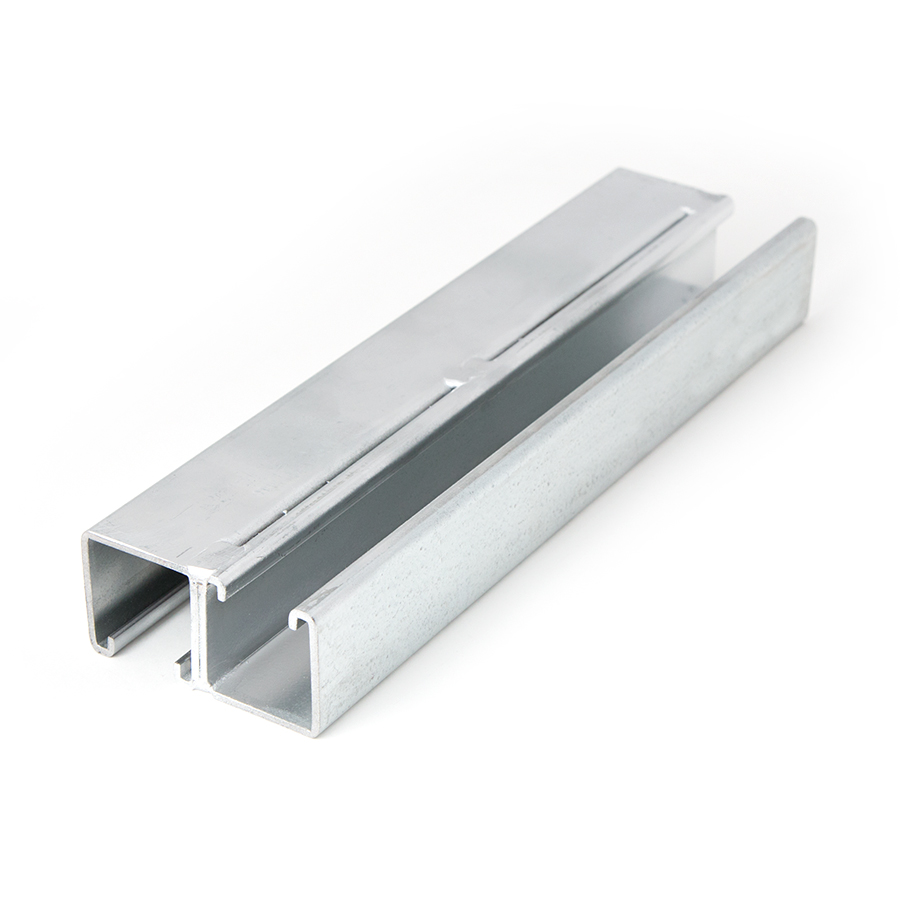

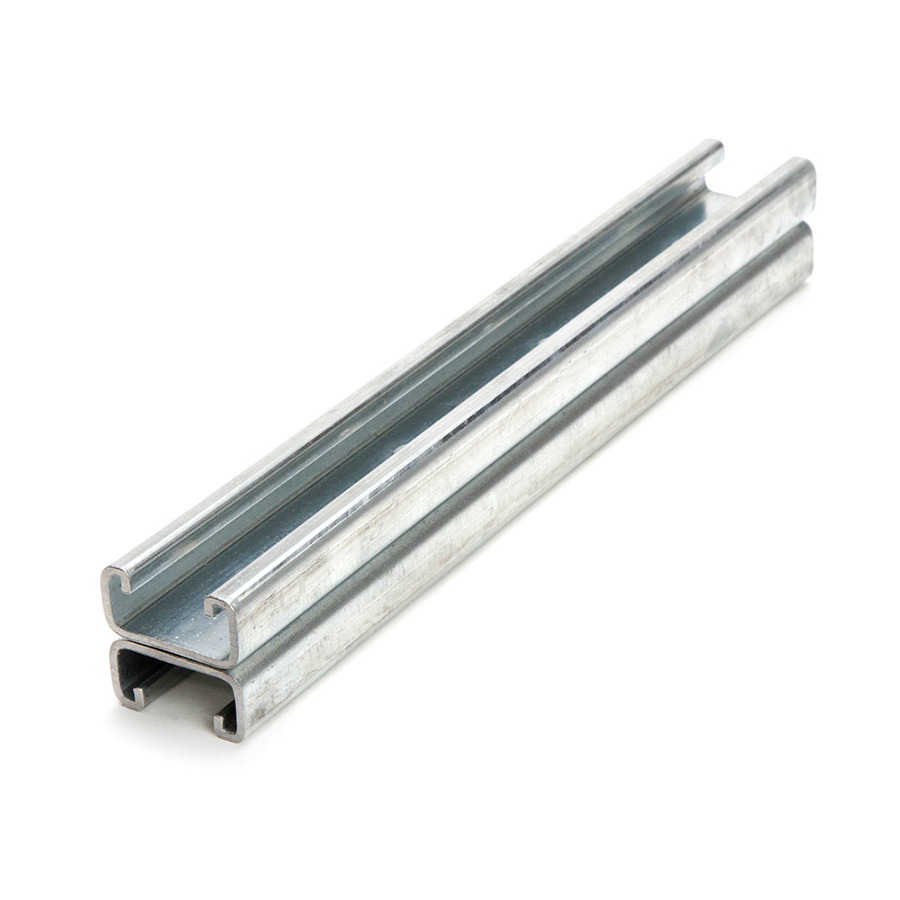

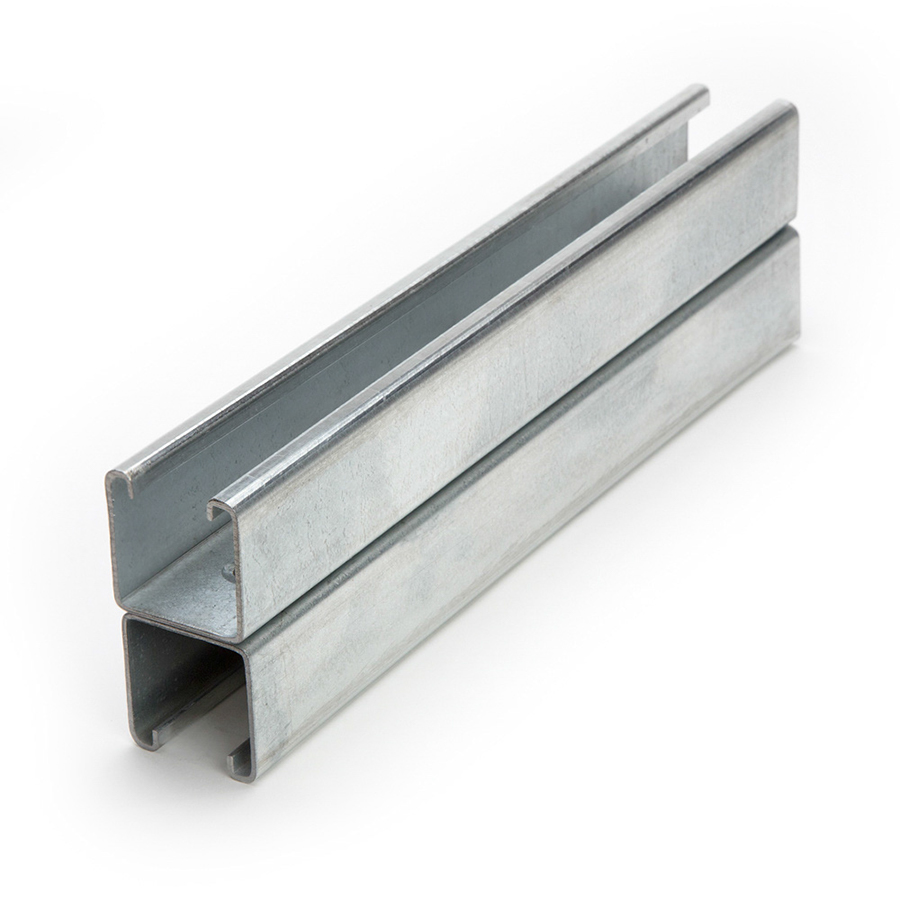

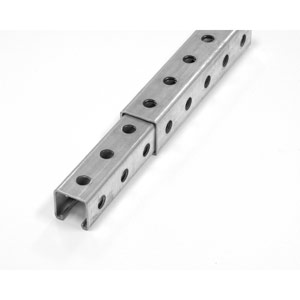

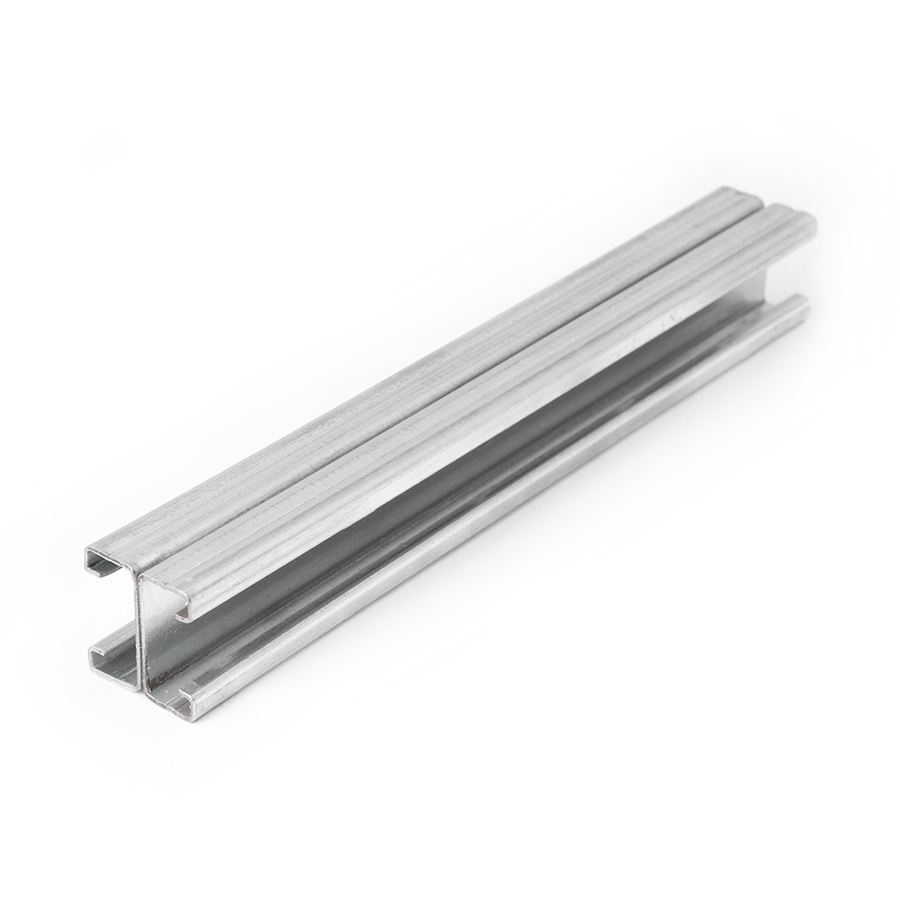

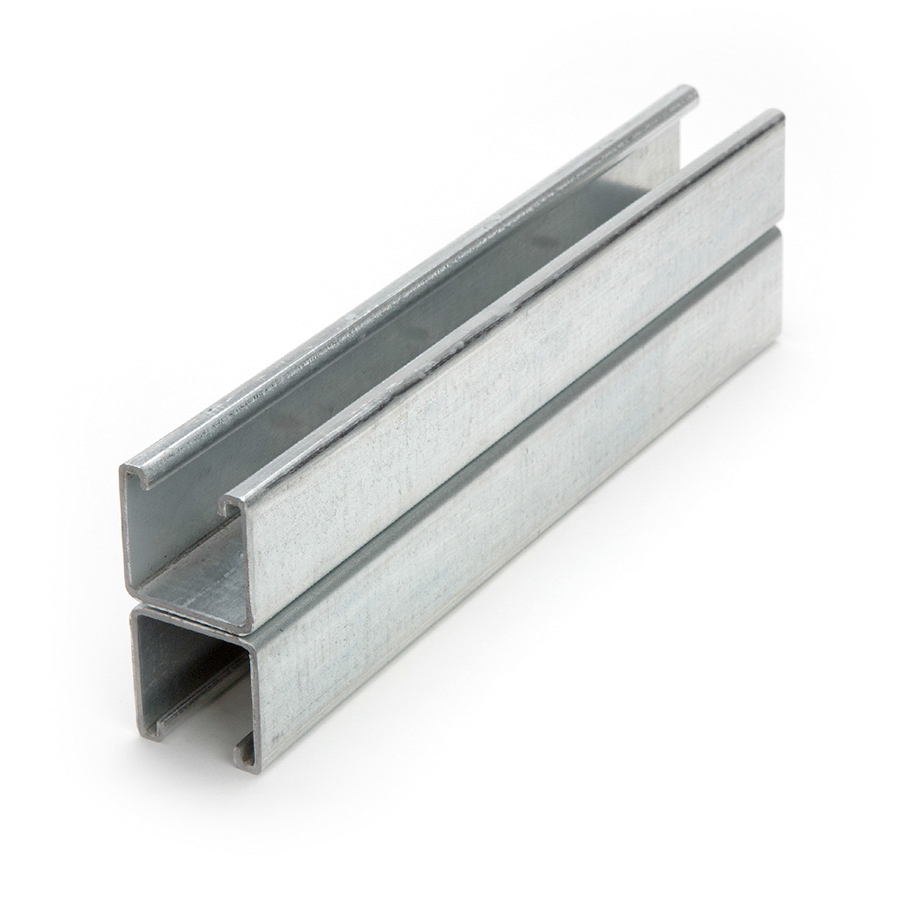

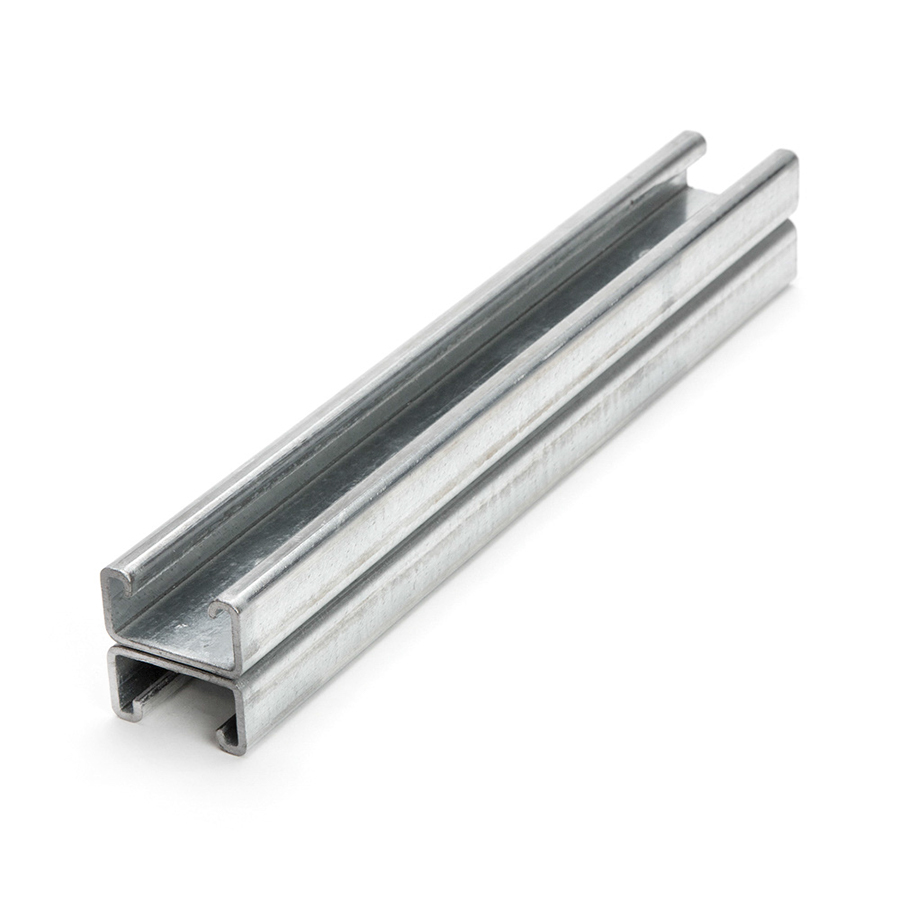

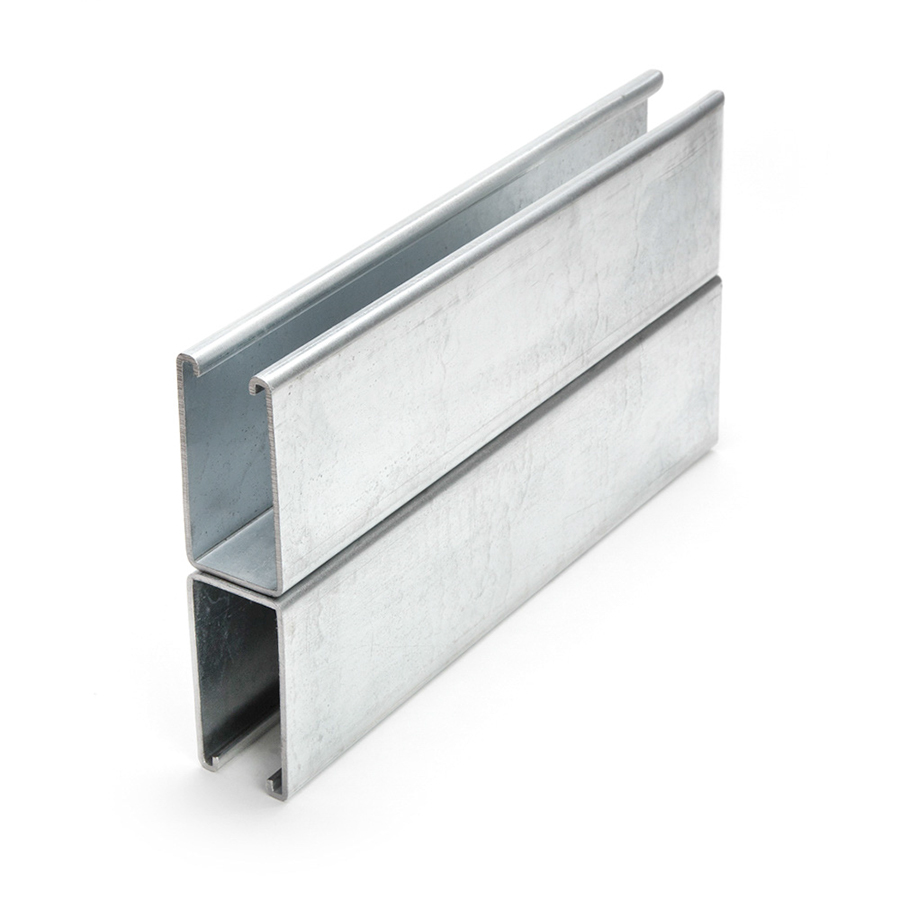

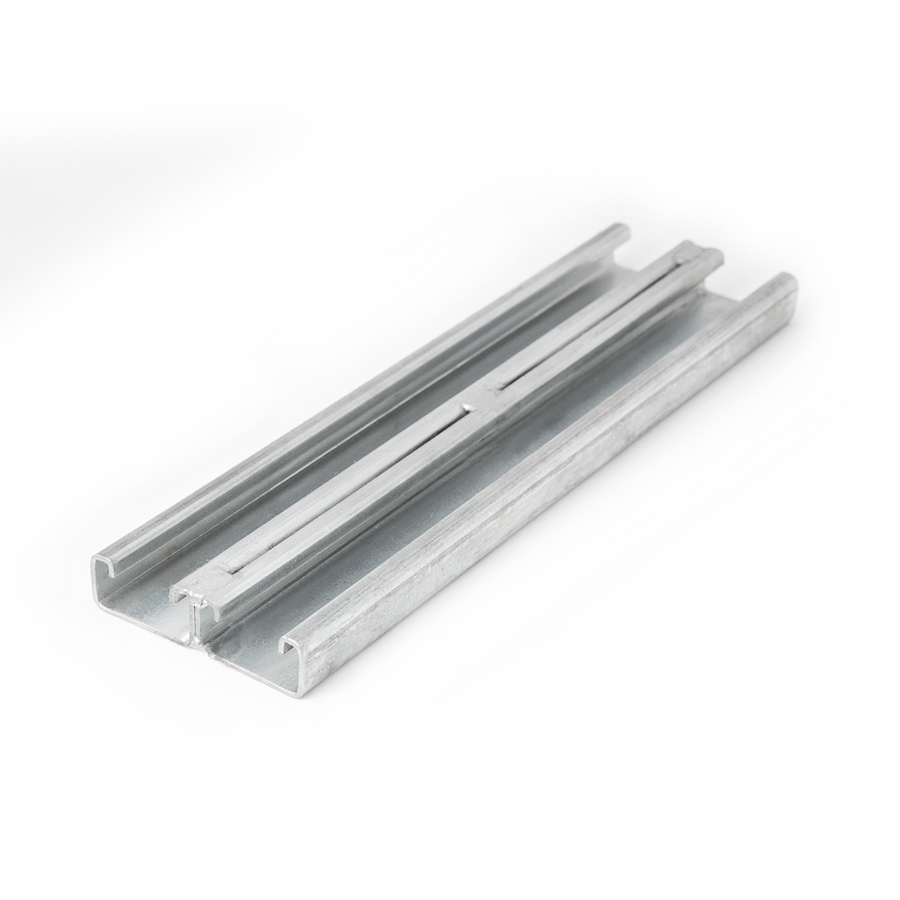

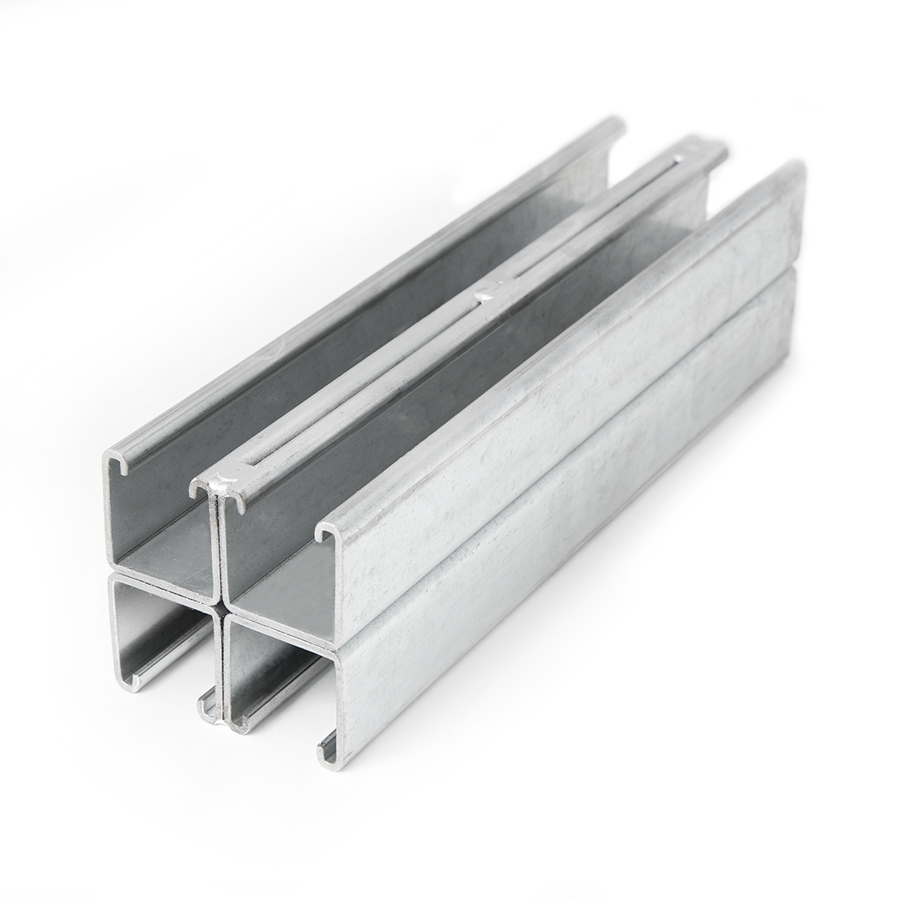

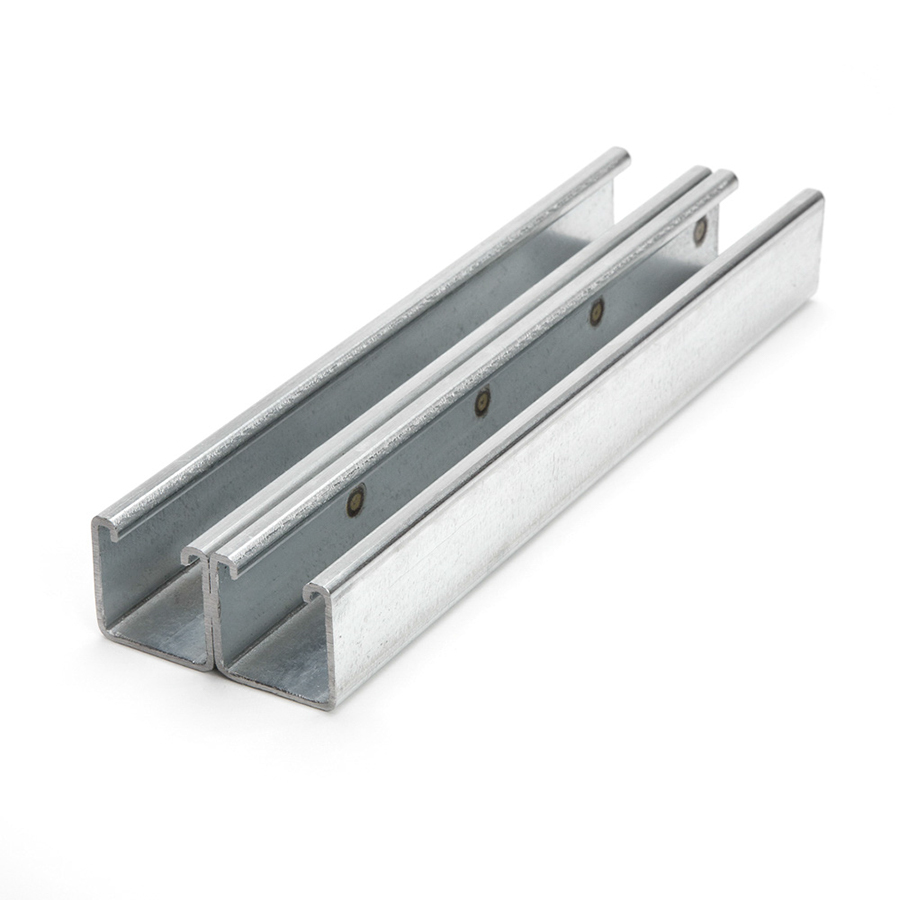

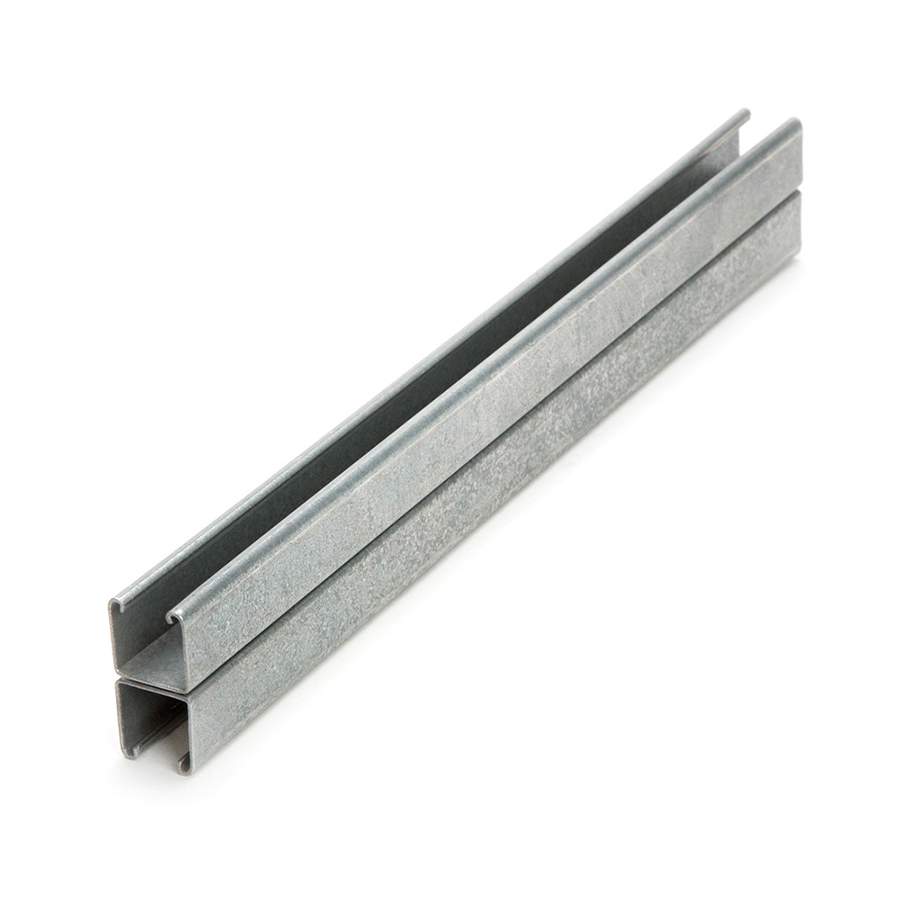

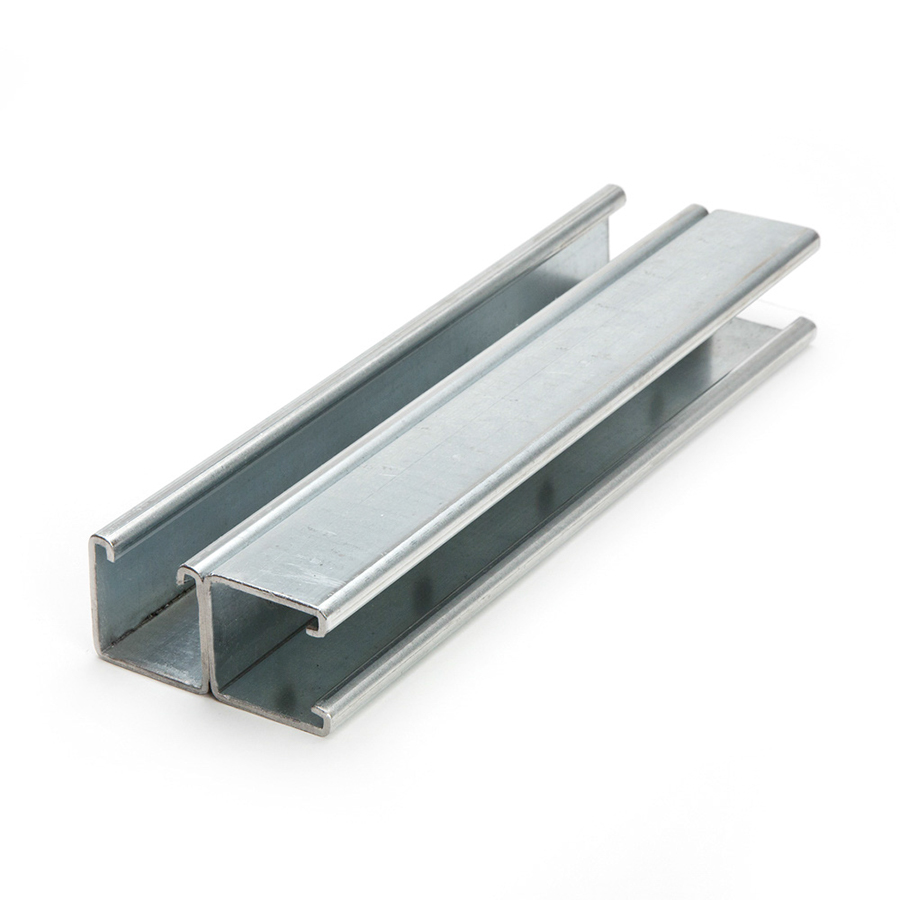

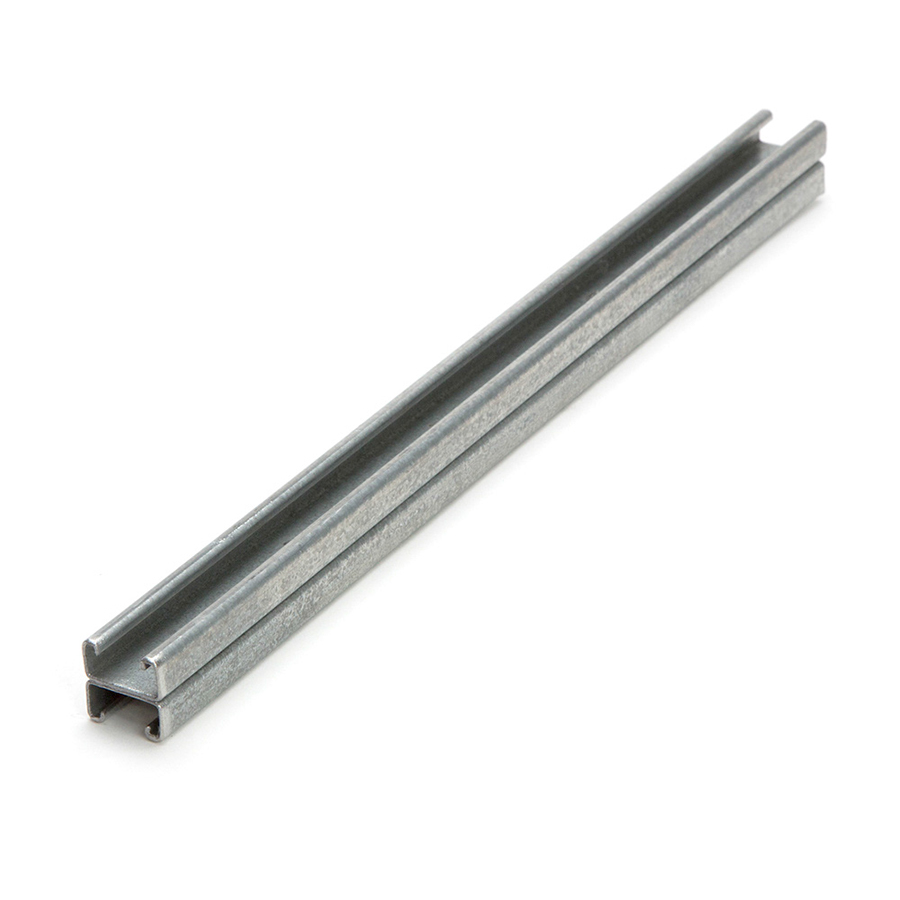

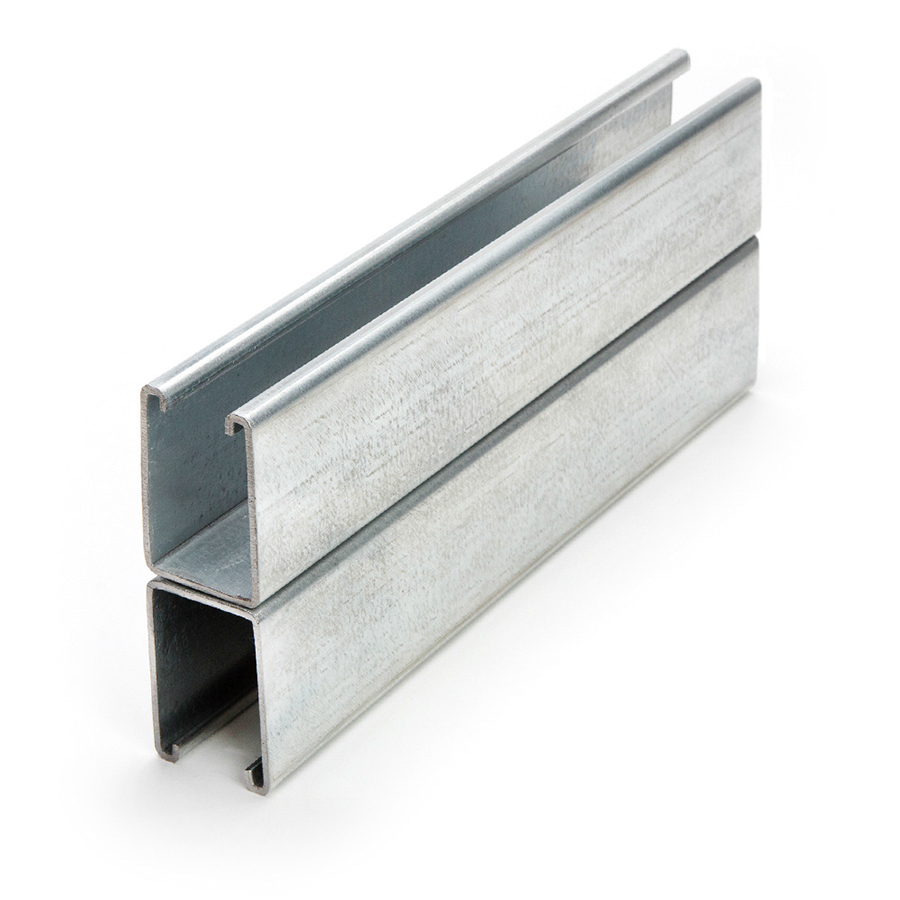

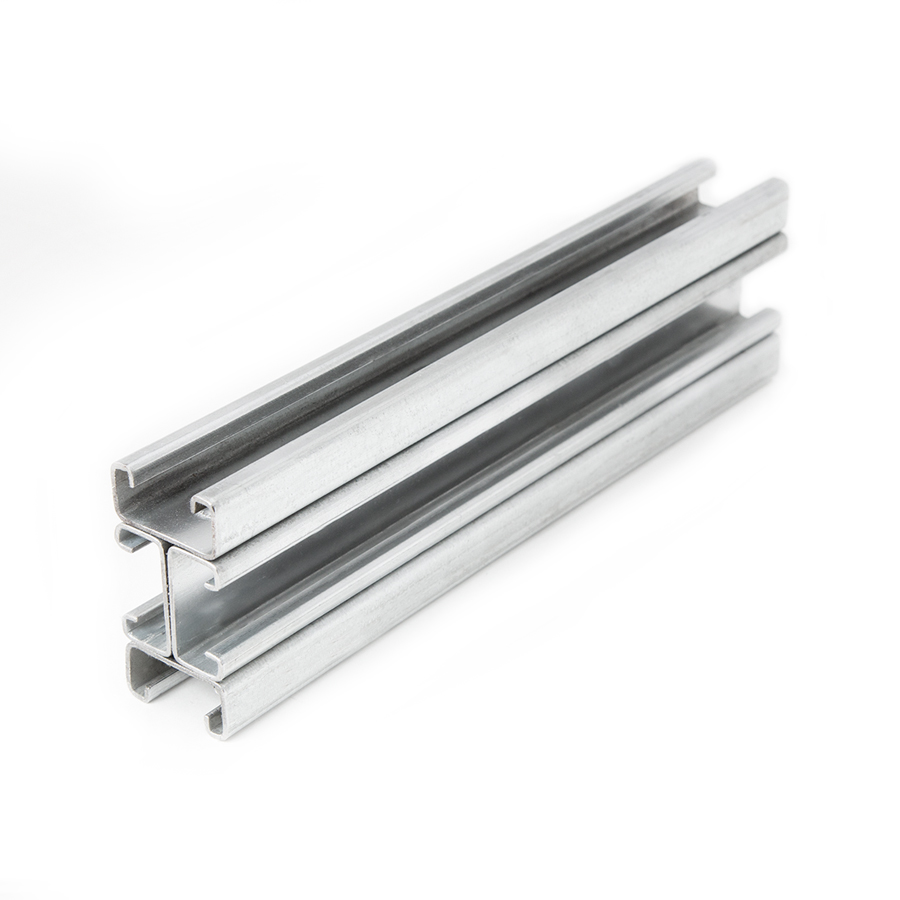

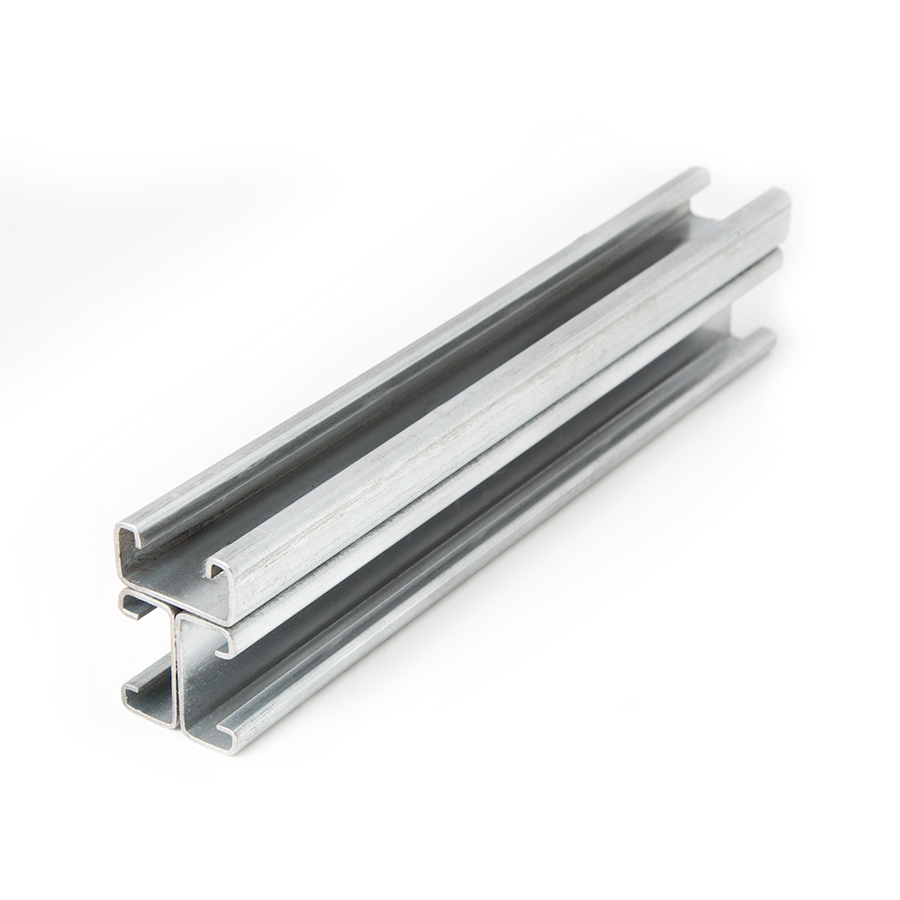

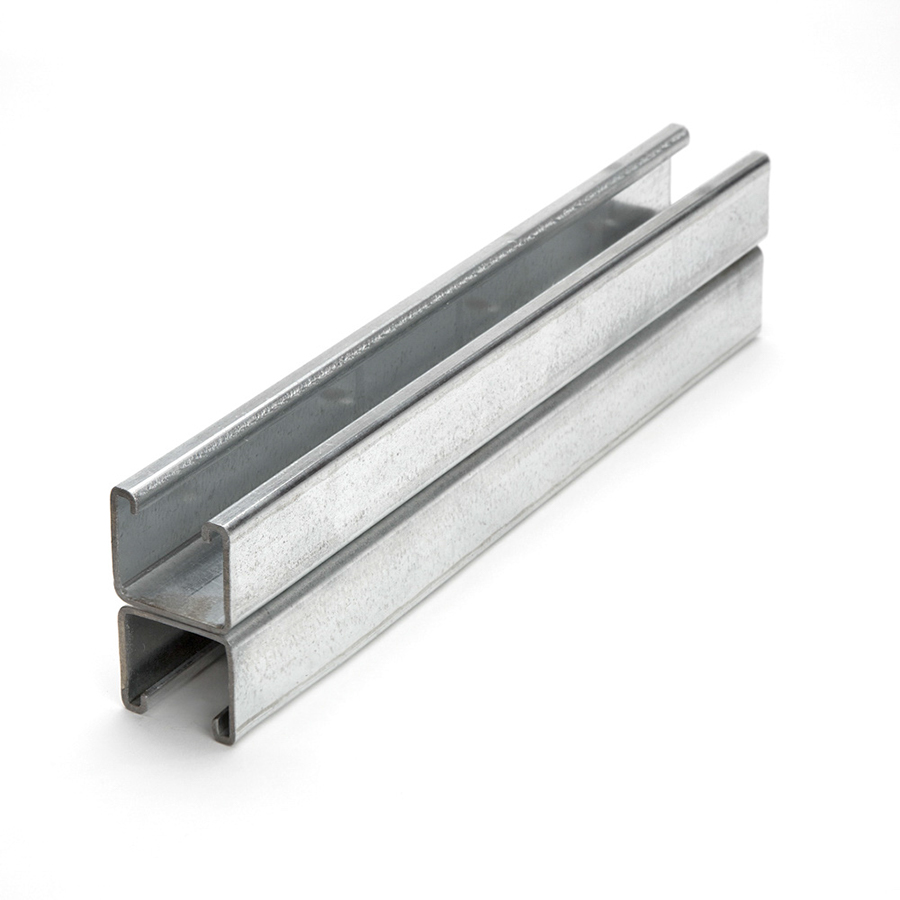

Customized as needed and available in Plain (PL), Pre-Galvanized (PG), Hot-Dip Galvanized (HD), Stainless Steel (type 316 [ST6] or 304 [ST4]), Aluminum (AL), Gold (GD), and Green (GR) finishes, Flex-Strut Metal Strut Framing Channel Systems can be ordered in a variety of fabrications and welded combinations to meet your specific needs. Available fabrications include Short Slots (SS), Long Slots (SL), Universal Slots (US), Holes (H), and Knockouts (KO). Custom metal strut channel fabrications available upon request. Available welded combinations include Back-to-Back, Side-to-Side, and Back-to-Side. Other welded combinations available upon request. See our product catalog for available dimensions and allowable beam/column loads.


Material Specifications

  • Plain (PL) – ASTM A1011 (Meets physical requirements of Grade 33)
  • Pre-Galvanized (PG) – G90 per ASTM A653 (0.90 oz/sq ft; 0.77 mil thickness) Meets physical requirements of Grade 33
  • Hot Dip Galvanized (HD) – ASTM A123 Grade 85 (3.3 mil thickness) Meets physical requirements of Grade 33
  • Stainless Steel (Type 316 [ST6] or 304 [ST4]) – ASTM A240
  • Aluminum (AL) – 6005-T5 (Exceeds 6063-T6 strength)
  • Gold (GD) – ASTM B633 Type II SC2 with yellow chromate (0.30 mil thickness)
  • Fiberglass (FGP)
  • PVC-coated
  • Green (GR)
  • Custom colors available upon request
