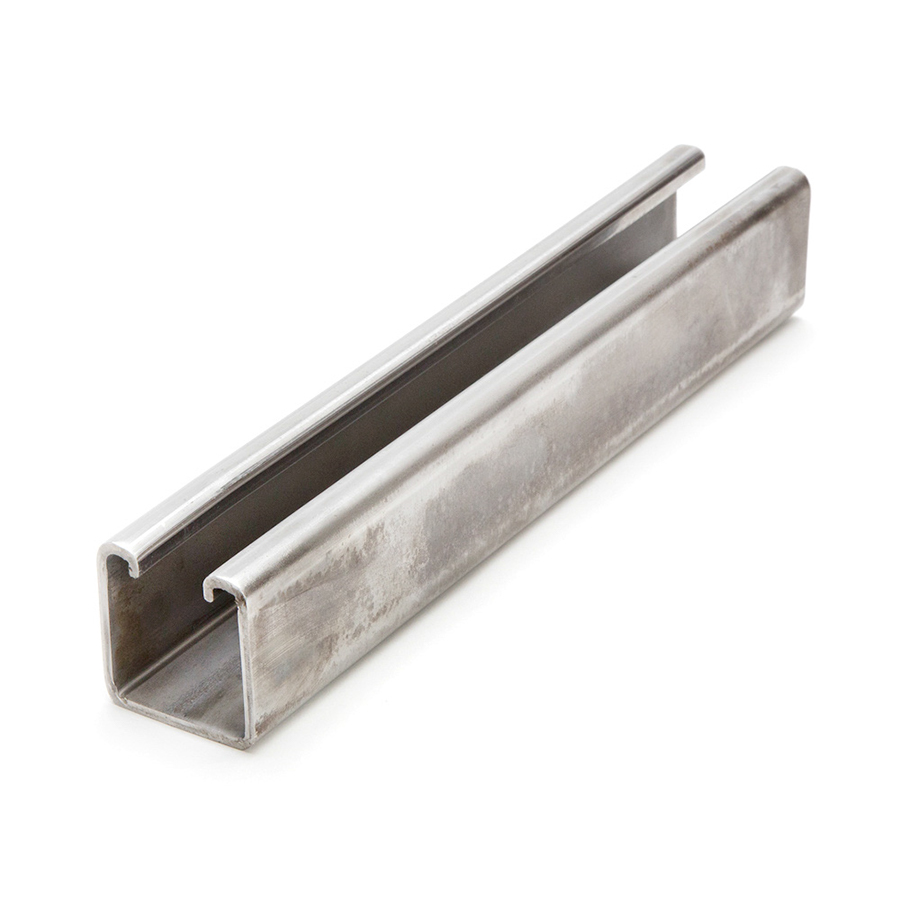

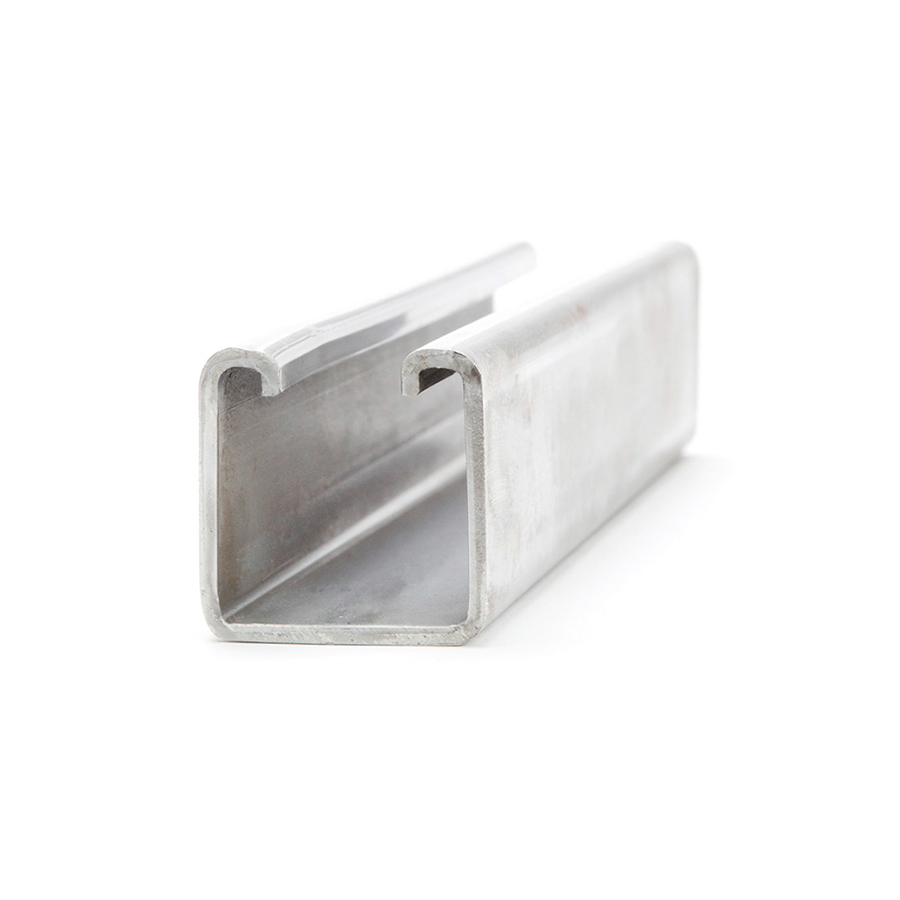

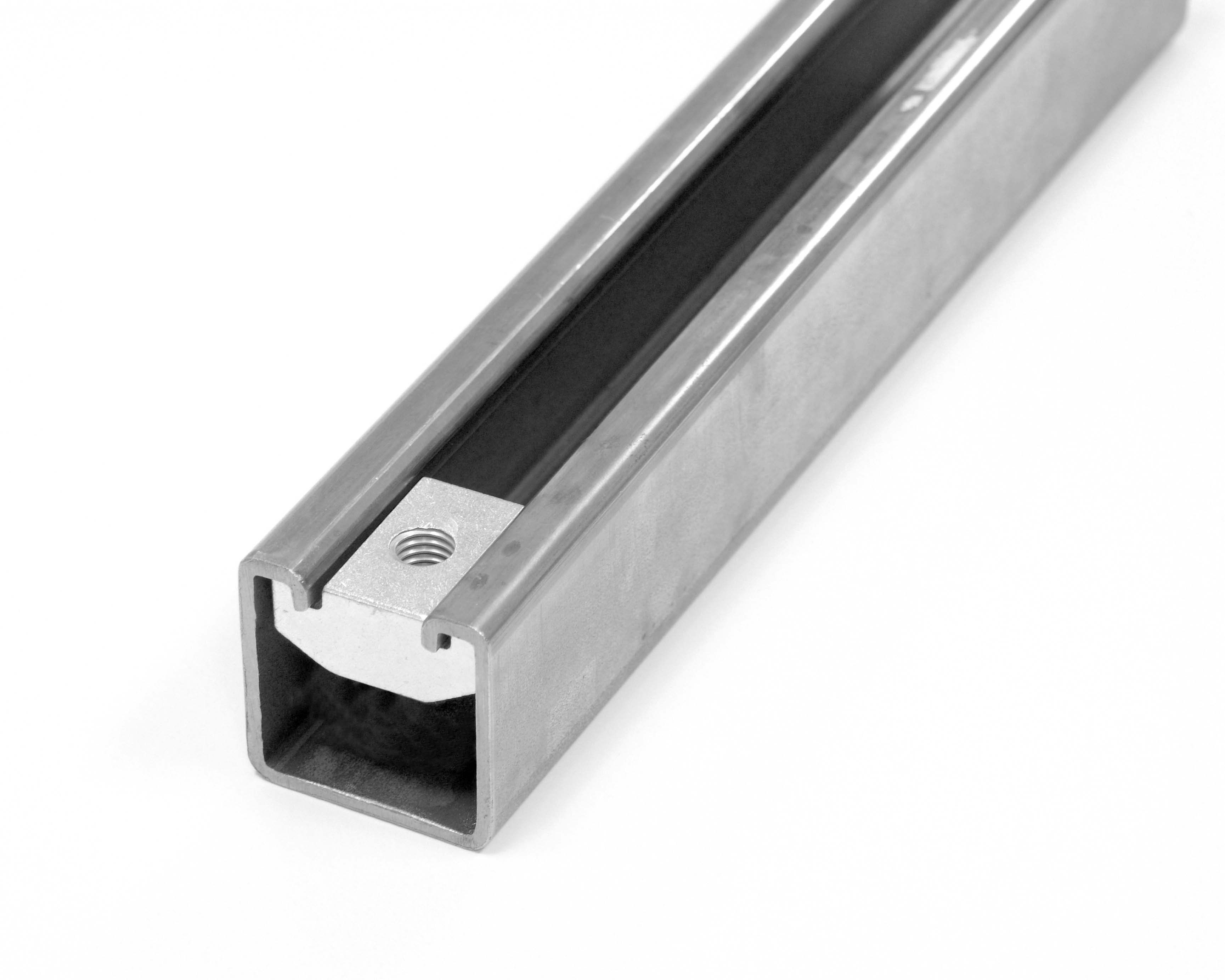

FS-280 Series
Product Description
Description
:

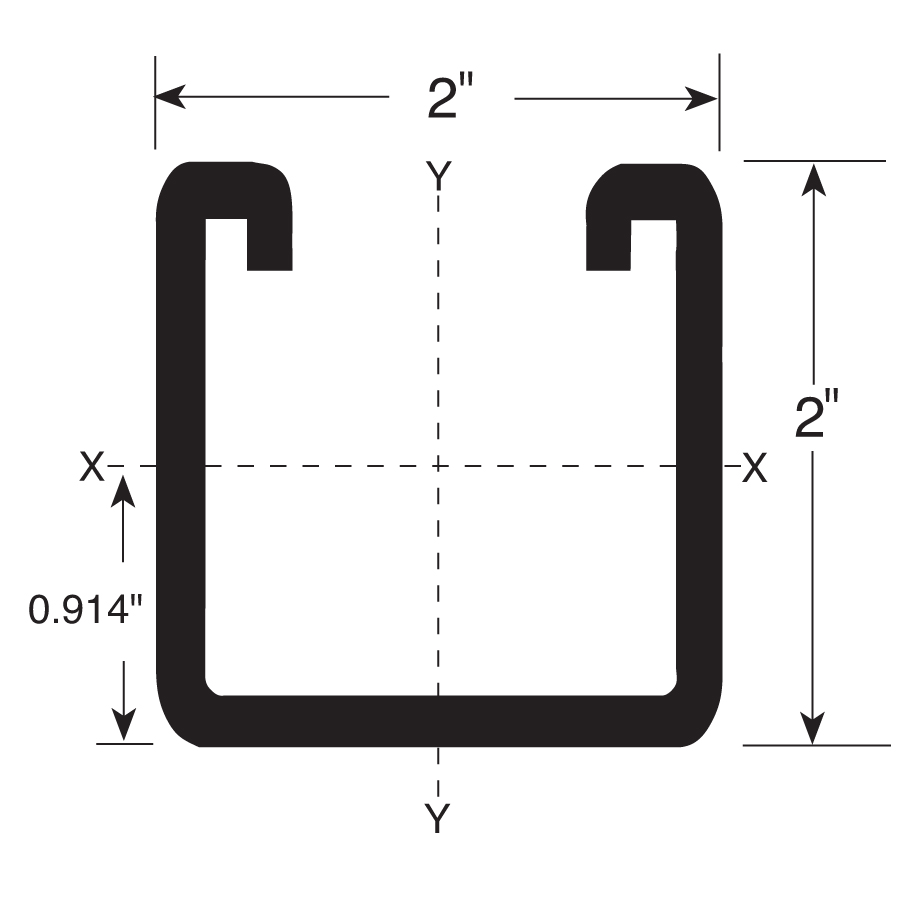

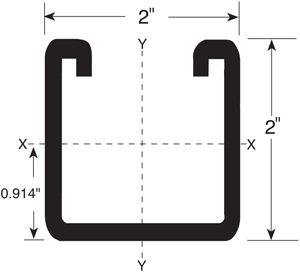

2" x 2" Channel x 10 Gauge
Width
:
2"
Height
:
2"
Gauge
:
10
Thickness
:
.134
Weight Per FT
:
3.10
View Available Finishes
View Available Fabrications
View Allowable Beam Loads
View Allowable Column Loads
View Section Properties
Additional Product Information & Downloads
FS-280 Series
Section Properties
SECTION PROPERTIES
WT/FT
LBS.
AREA
SQ. IN.
3.10
.912
X-X AXIS
Ix
in
4
Sx
in
3
Rx
in
.476
.438
.723
Y-Y Axis
Iy
in
4
Sy
in
3
Ry
in
.569
.569
.790
I = Moment of Inertia S = Section Modulus R = Radius of Gyration
Available Finishes
Plain (PL) – ASTM A1011 (Meets physical requirements of Grade 33)
Green (GR)
Hot Dip Galvanized (HD) – ASTM A123 Grade 85 (3.3 mil thickness) Meets physical requirements of Grade 33
Custom colors available upon request
Available Fabrications
Custom channel fabrications available upon request
Allowable Beam Loads — Span In Inches
24"
36"
48"
60"
72"
84"
96"
108"
120"
132"
144"
156"
180"
Stress
3,650
2,440
1,830
1,460
1,220
1,040
910
810
730
660
610
560
490
1/240
***
***
***
1,270
880
650
500
390
320
260
220
190
140
TOTAL STATIC LOAD in LBS.
Upper line is MAXIMUM ALLOWABLE UNIFORM LOAD creating 25,000 PSI Bending Stress about the X-Axis based on SIMPLE BEAM condition.
Lower line shows TOTAL UNIFORM LOAD which produces a defl ection of 1/240th of the SPAN, (i.e.; 1/2" Def. for 120" Span)
Multiply values in upper line by 0.5 to obtain ALLOWABLE CENTER CONCENTRATED LOAD at 25,000 PSI Stress. Defl ection by 0.8.
Load limited by spot weld shear.
For punched channel, reduce weld limited loads by 0.75 due to 4" weld spacing.
*** Load controlled by 25,000 PSI design stress.
Allowable Column Loads — Unsupported Height of Column in Inches
24"
30"
36"
42"
48"
60"
72"
84"
96"
108"
120"
16,320
15,055
13,765
12,520
11,350
9,300
7,635
6,315
5,385
4,690
4,135
COLUMN LOADS are allowable axial loads applied at the section centroid. Loads applied at the slot face must be reduced for Eccentricity.
ALLOWABLE COLUMN LOADS shown are based upon an effective length factor K = 0.8 standard engineering practice required for evaluation of other conditions.
